Bussmann Non-Indicating Fast-Acting Blade Fuse | 20 Amps | 32VDC | Yellow Colour

SKU #:ATM-20-BUSMFG #:ATM-20
Image of Bussman logo

Bussmann Non-Indicating Fast-Acting Blade Fuse | 20 Amps | 32VDC | Yellow Colour

SKU #:ATM-20-BUSMFG #:ATM-20
$ / EA

    Description

    ATM Non-Indicating Fast-Acting Blade Fuse, 20 Amp, 32VDC, Yellow Colour, 1kA Interrupting Rating, Silver-Plated Zinc Terminal and Element, UL 94 HB Flammability Rating, Polyamide Housing Material, -40 C to 100 C, 95% RH Non-Condensing Operating Temperature Range

    Documents

    Specifications

    • BrandEaton Bussmann
    • ManufacturerCooper Industries Inc.
    • Fuse Product TypeFlat Blade Fuses
    • Fuse SeriesATM
    • Fuse Amps20
    • Fuse Voltage Rating32 VDC
    • Indicating/Non-IndicatingNon-Indicating
    • Fuse SpeedFast-Acting

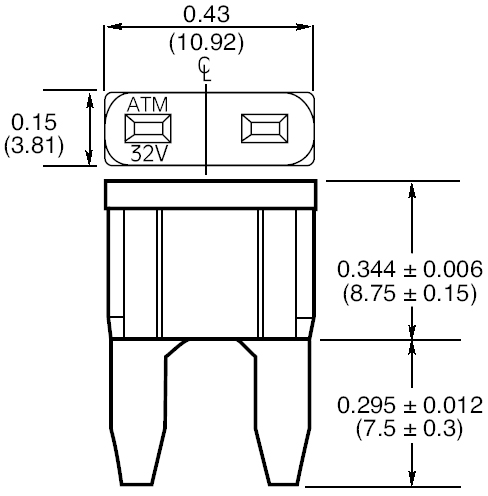

    • Physical Size (In.)13/32 X 1-1/2
    • Interrupting Rating (Amps)1kA
    • Operating Temperature-40 to 100 C, 95% RH Non-Condensing
    • Typical ApplicationAutomotive and Low-Voltage Control Circuits

    Disclaimer

    For professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
