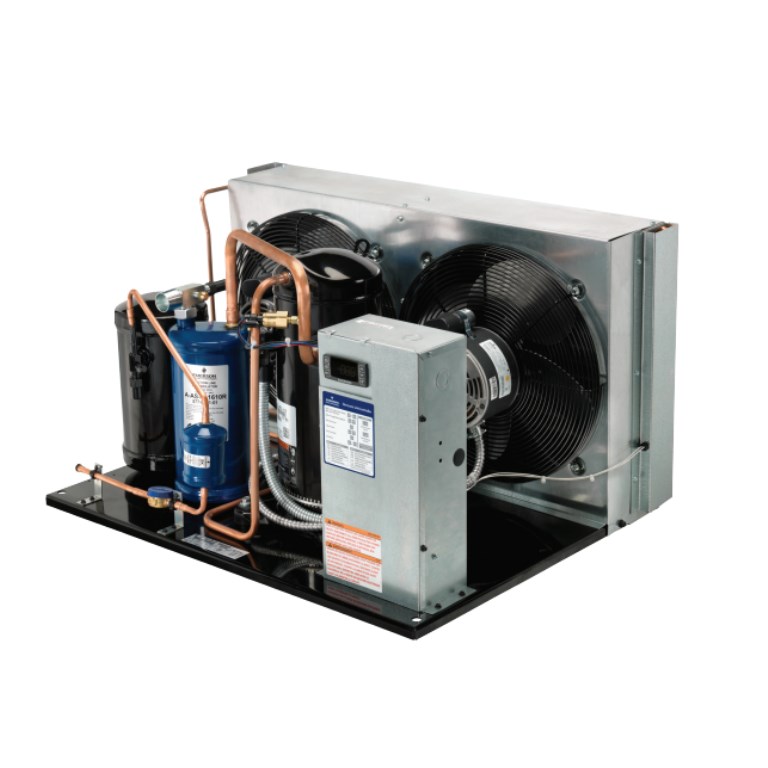

Copeland Medium Temperature Air-Cooled Scroll Condensing Unit
Copeland Medium Temperature Air-Cooled Scroll Condensing Unit
$ / EA
Description
This unit features a scroll compressor optimized for medium temperature applications, offering stable performance across a range of refrigerants including R404A, R448A, and R449A. It operates on 208–230V power and is designed for air-cooled heat rejection in commercial refrigeration systems.
Documents
Specifications
- BrandCopeland
- ManufacturerCopeland Canada
- Chassis Body StyleStandard
- Compressor TypeScroll
- Application TemperatureMedium Temperature
- CertificationsUL, CSA Certified
- 20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R134A)26,700
- 20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R513A)26,700
- 30 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R404A)31600
- 30 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R450A)23,700
- Cabinet Height (In.)35-1/4
- Cabinet Length (In.)37-1/4
- Cabinet Width (In.)37-1/4
- Chassis MaterialSteel
- Compressor DesignScroll
- Compressor Horsepower Rating1.5
- Compressor Locked Rotor Amps74
- Compressor Rated Load Amps16-1/2
- Condenser StyleAir-Cooled
- Fan Motor Quantity1
- Liquid Line Size (In.)3/8
- Maximum Airflow (CFM)2800
- Maximum Ambient Operating Temperature121 F (49 C)
- Maximum Fuse Amps40
- Minimum Circuit Ampacity23
- Minus 20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R404A)27200
- Minus 20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R448A)27100
- Minus 20 F SST Capacity (Btu/Hr) @ 90 Degrees Ambient (R449A)26400
- Motor DesignPSC
- Motor Overload ProtectionAutomatic Reset Thermal
- Oil Recharge (oz.)72
- Weight (lbs)245
