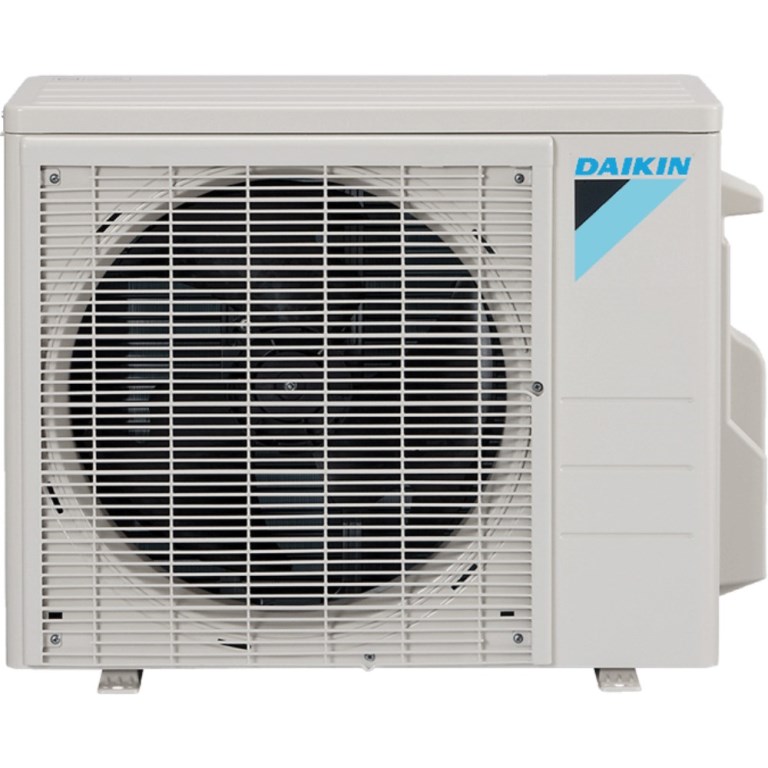

Daikin 12,000 BTU/Hr Mid Efficiency Outdoor Heat Pump | 208-230/1
Discontinued Model
Daikin 12,000 BTU/Hr Mid Efficiency Outdoor Heat Pump | 208-230/1
Discontinued Model
$
Description
1 Ton Mid Efficiency Outdoor Heat Pump, 12,000 BTU/Hr Nominal Capacity, R410A, 208-230/1/60
Specifications
- BrandDaikin
- Energy Efficiency Rating (EER)11 EER with FTXR12TVJU(W/S), 12.5 EER with FFQ12Q2VJU
- Energy Efficiency Rating (SEER)17 SEER with FTXR12TVJU(W/S), 20.2 SEER with FFQ12Q2VJU, 20 to 20.99, 17 to 17.99
- Liquid Line Size (In.)1/4
- Sound Pressure Level (dBa)49/51
- ZoningSingle-Zone
- Height (In.)21-5/8
- Width (In.)26-9/16
- Depth (In.)11-3/16
- Capacity (Btu/Hr)12,000
- Compatible Indoor Unit(s) - CassetteFFQ12Q2VJU
- Compatible Indoor Unit(s) - Ducted ConcealedFDMQ12RVJU
- Compatible Indoor Unit(s) - Wall MountFTXR12TVJUS, FTXR12TVJUW
- Compressor Rated Load Amps @ 208/230 V7.50A
- Cooling Airflow H/M/L/SL (CFM)1105
- Drain Connection (In.)11/16
- Enhanced Low Ambient Outdoor Cooling Temperature Range5 to 115 F (-15 to 46 C) Matched with FTXR12TVJU(W/S) (Cutting a Jumper or Dipswitch Setting Required), 14 to 115 F (-10 to 46 C) Matched with FFQ12Q2VJU (Cutting a Jumper or Dipswitch Setting Required)
- Fan Motor Rated Output (Watts)39
- Heating Airflow H/M/L/SL (CFM)1105
- Maximum Fuse Amps15.00A
- Maximum Lineset Length (Ft)65.6
- Modified Outdoor Cooling Temperature Range-4 to 115 F (-20 to 46 C) Matched with FTXR12TVJU(W/S), FDMQ12RVJU or FFQ12Q2VJU (Cutting a Jumper or Dipswitch Setting and Air Adjustment Grille Required)
- Nominal Capacity (Tons)1
- Outdoor Heating Temperature Range5 to 65 F (-15 to 18 C) Matched with FTXR12TVJU(W/S), FDMQ12RVJU or FFQ12Q2VJU
- Standard Outdoor Cooling Temperature Range50 to 115 F (10 to 46 C) Matched with FTXR12TVJU(W/S) or FFQ12Q2VJU
- Suction Line Size (In.)3/8
- Voltage (V)208-230/1
- Weight (lbs)60
