Description

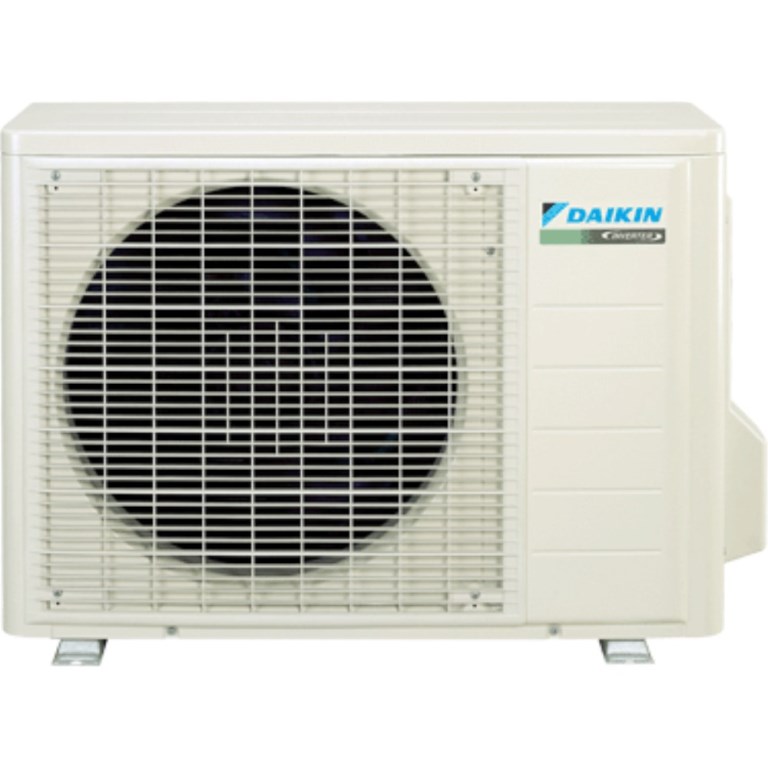

1.25 Ton High Efficiency Outdoor Heat Pump, 15,000 BTU/Hr Nominal Capacity, R410A, 208-230/1/60
Documents
Specifications
- BrandDaikin
- Energy Efficiency Rating (EER)14.4 EER with FTXS15LVJU
- Energy Efficiency Rating (SEER)20.6 SEER with FTXS15LVJU, 20 to 20.99
- Liquid Line Size (In.)1/4
- Sound Pressure Level (dBa)47/48
- ZoningSingle-Zone
- Height (In.)28-15/16
- Width (In.)32-1/2
- Depth (In.)11-13/16
- Capacity (Btu/Hr)15,000
- Compatible Indoor Unit(s) - Wall MountFTXS15LVJU
- Compressor Rated Load Amps @ 208/230 V4.70-4.20A
- Cooling Airflow H/M/L/SL (CFM)1713/1469
- Drain Connection (In.)5/8
- Fan Motor Rated Output (Watts)53
- Heating Airflow H/M/L/SL (CFM)1405/1306
- Maximum Fuse Amps20.00A
- Maximum Lineset Length (Ft)98.4
- Modified Outdoor Cooling Temperature Range0 to 115 F (-18 to 46 C) Matched with FTXS15LVJU (Cutting a Jumper or Dipswitch Setting and Air Adjustment Grille Required)
- Nominal Capacity (Tons)1-1/4
- Outdoor Heating Temperature Range5 to 65 F (-15 to 18 C) Matched with FTXS15LVJU
- Standard Outdoor Cooling Temperature Range50 to 115 F (10 to 46 C) Matched with FTXS15LVJU
- Suction Line Size (In.)1/2
- Voltage (V)208-230/1
- Weight (lbs)104
