Specifications

• BrandDaikin
• Cooling Airflow H/M/L/SL (CFM)565/523/477/395
• Drain Connection (In.)25/32
• Heating Airflow H/M/L/SL (CFM)565/523/477/395
• Hertz60 Hz
• Outdoor Heating Temperature Range-13 to 60 F (-25 to 16 C) Matched with any MXL Compatible Outdoor, 5 to 60 F (-15 to 16 C) Matched with any MXS Compatible Outdoor or RMXS48LVJU
• Sound Pressure Level (dBA)38/36/34/32
• Standard Outdoor Cooling Temperature Range14 to 115 F (-10 to 46 C) Matched with any MXL or MXS Compatible Outdoor, 23 to 115 F (-5 to 46 C) Matched with RMXS48LVJU
• Voltage (V)208-230/1

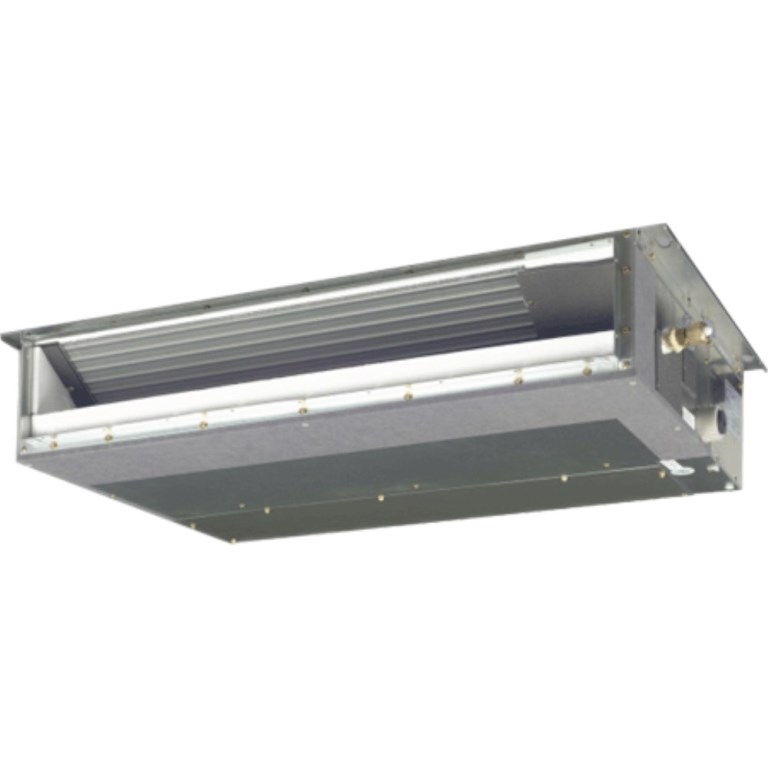

• Indoor Unit StyleSlim Duct
• ManufacturerDaikin
• Capacity (Btu/Hr)24,000
• Heat/Cool FunctionHeating and Cooling
• ZoningMulti-Zone
• Height (In.)7-7/8
• Width (In.)43-5/16
• Depth (In.)24-7/16
• RefrigerantR410A
• DisclaimerFor professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
• Compatible Outdoor Unit(s) - Multi-Zone3MXL24QMVJU, 3MXL24RMVJU, 4MXL36TVJU, 4MXS36NMVJU, 4MXS36RMVJU, 5MXS48TVJU, RMXS48LVJU
• Liquid Line Size (In.)1/4
• Maximum Cooling Airflow (CFM)400 to 599
• Maximum Heating Airflow (CFM)400 to 599
• Nominal Capacity (Tons)2
• Suction Line Size (In.)5/8
• Weight (lbs)66
