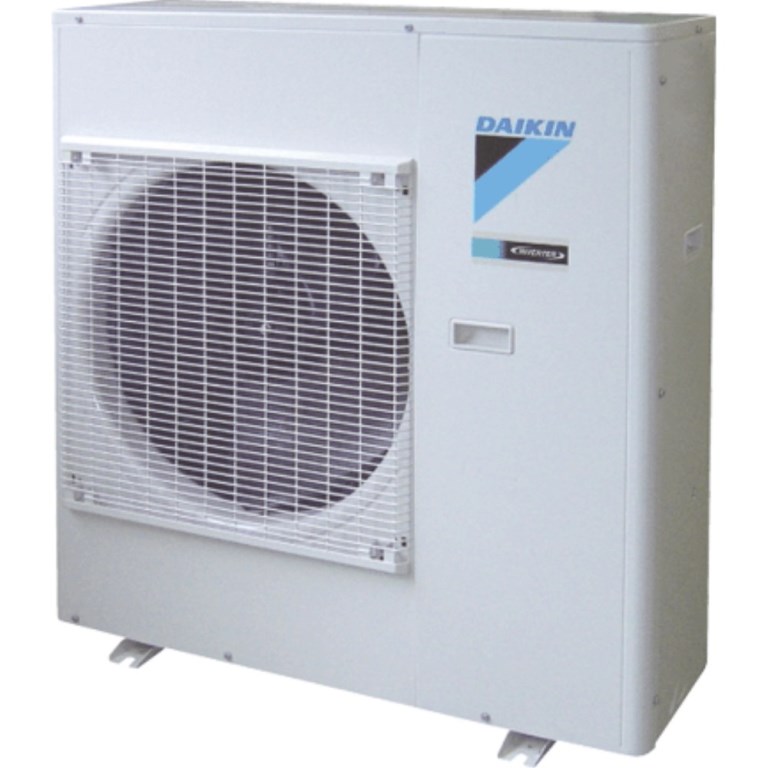

Daikin 30,000 BTU/Hr High Efficiency Outdoor Air Conditioner | 208-230/1

Discontinued Model

SKU #:RKS30LVJU-DAIMFG #:RKS30LVJU

Daikin 30,000 BTU/Hr High Efficiency Outdoor Air Conditioner | 208-230/1

Discontinued Model

SKU #:RKS30LVJU-DAIMFG #:RKS30LVJU

$

Description

2.5 Ton High Efficiency Outdoor Air Conditioner, 30,000 BTU/Hr Nominal Capacity, R410A, 208-230/1/60

Documents

Wiring Diagram.pdf

Specifications

BrandDaikin
Energy Efficiency Rating (EER)10.71 EER with FTXS30LVJU
Energy Efficiency Rating (SEER)19.3 SEER with FTXS30LVJU, 19 to 19.99
Liquid Line Size (In.)3/8
Sound Pressure Level (dBa)54
ZoningSingle-Zone
Height (In.)38-15/16
Width (In.)37
Depth (In.)12-5/8
Capacity (Btu/Hr)30,000
Compatible Indoor Unit(s) - Wall MountFTXS30LVJU
Compressor Rated Load Amps @ 208/230 V13.50-12.20A
Cooling Airflow H/M/L/SL (CFM)2627
Drain Connection (In.)5/8
Fan Motor Rated Output (Watts)200
Maximum Fuse Amps20.00A
Maximum Lineset Length (Ft)98.4
Modified Outdoor Cooling Temperature Range0 to 115 F (-18 to 46 C) Matched with FTXS30LVJU (Cutting a Jumper or Dipswitch Setting and Air Adjustment Grille Required), -40 to 115 F (-40 to 46 C) Matched with FTXS30LVJU (Air Adjustment Grille and Low Ambient Kit Required)
Nominal Capacity (Tons)2-1/2
Standard Outdoor Cooling Temperature Range50 to 115 F (10 to 46 C) Matched with FTXS30LVJU
Suction Line Size (In.)5/8
Voltage (V)208-230/1
Weight (lbs)179
