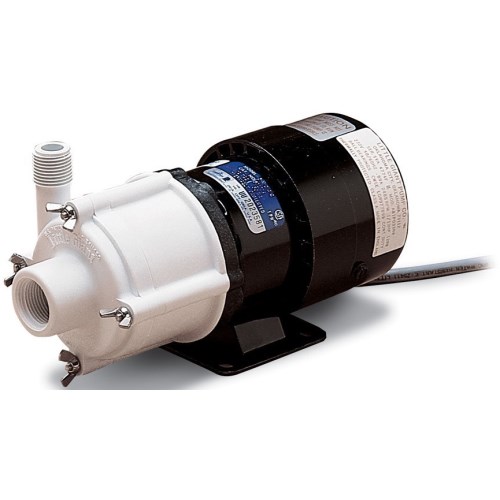

Little Giant 3-MD-SC Non-Submersible In-line Magnetic Drive Pump with 6' Cord | 115V
Little Giant 3-MD-SC Non-Submersible In-line Magnetic Drive Pump with 6' Cord | 115V
$ / EA
Description
The Little Giant 581503 3-MD-SC Features a Leakproof, Seal-Less Magnetic Drive and is Designed for in-line, Non-Submersible use. Volute, Magnet Housing and Impeller are Glass-Filled Polypropylene for Excellent Chemical Resistance. Ceramic Shaft and Thrust Washers are 99.5% Pure Alumina for Excellent Wear and Trouble-Free Service. Pumping Heads are Easily Rotated, Cleaned or Serviced with no Special Tools Required. Spindle Shaft is Supported at both ends to Prevent Impeller Damage during Start-up and Stop of Pump
Documents
Specifications
- BrandLittle Giant
- ManufacturerFranklin Electric
- Pump Product TypeMagnetic Drive Pumps
- TubingNot Included
- Amperage2.40A
- Cord Length (Ft)6
- Discharge Connection (In.)1/2, 1/2 MNPT
- Height (In.)4.9
- Hertz60 Hz
- Horsepower Rating1/12
- Housing MaterialGlass-Filled Polypropylene
- Impeller MaterialGlass-Filled Polypropylene
- Inlet Connection (In.)3/4, 3/4 FNPT
- Length (In.)9.6
- Pump Performance (GPH @ 1' Head)701 to 800, 750
- Pump Performance (GPH @ 15' Head)425
- Pump Performance (GPH @ 3' Head)710
- Pump Performance (GPH @ 6' Head)665
- Pump Performance (GPH @ 9' Head)600
- Voltage (V)115 V
- Volute MaterialGlass-Filled Polypropylene
- Wattage190
- Weight (lbs)8-1/2
- Width (In.)4
