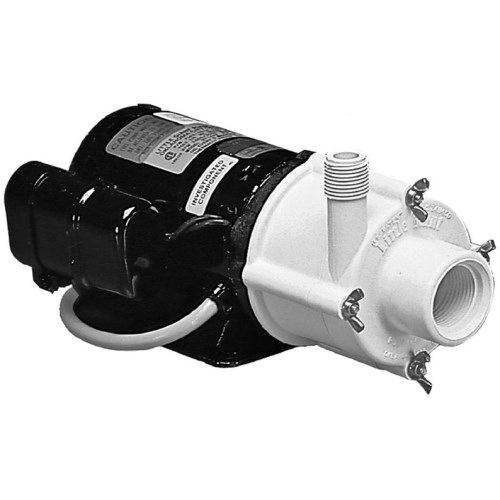

Little Giant 4-MD-SC Non-Submersible In-Line Magnetic Drive Pump with 6' Cord | 115V
Little Giant 4-MD-SC Non-Submersible In-Line Magnetic Drive Pump with 6' Cord | 115V
$ / EA
Description
The Little Giant 582503 Magnetic Drive Pump Features a Leakproof, Seal-Less Magnetic Drive and is Designed for in-line, Non-Submersible use. Volute, Magnet Housing and Impeller are Glass-Filled Polypropylene for Excellent Chemical Resistance. Ceramic Shaft and Thrust Washers are 99.5% Pure Alumina for Excellent Wear and Trouble-Free Service. Pumping Heads are Easily Rotated, Cleaned or Serviced with no Special Tools Required. Spindle Shaft is Supported at both ends to Prevent Impeller Damage during Start-up and Stop of Pump
Documents
Specifications
- BrandLittle Giant
- ManufacturerFranklin Electric
- Pump Product TypeMagnetic Drive Pumps
- TubingNot Included
- DisclaimerFor professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
- Amperage1.70A
- Cord Length (Ft)6
- Discharge Connection (In.)1/2, 1/2 MNPT
- Height (In.)4.9
- Hertz60 Hz
- Horsepower Rating1/10
- Housing MaterialGlass-Filled Polypropylene
- Impeller MaterialGlass-Filled Polypropylene
- Inlet Connection (In.)1, 1 FNPT
- Length (In.)9.73
- Pump Performance (GPH @ 1' Head)801 to 900, 850
- Pump Performance (GPH @ 15' Head)550
- Pump Performance (GPH @ 3' Head)810
- Pump Performance (GPH @ 6' Head)765
- Pump Performance (GPH @ 9' Head)710
- Voltage (V)115 V
- Volute MaterialGlass-Filled Polypropylene
- Wattage185
- Weight (lbs)9
- Width (In.)5-1/2
