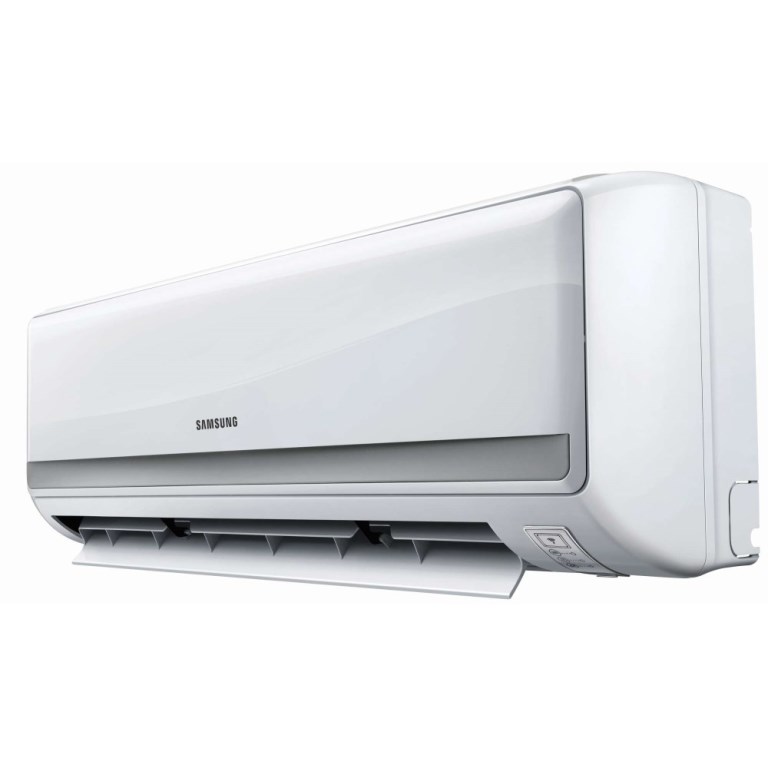

Samsung 24,000 BTU/Hr Light Commercial High Wall Heat Pump | 208-230/1
Discontinued Model
Samsung 24,000 BTU/Hr Light Commercial High Wall Heat Pump | 208-230/1
Discontinued Model
$ / EA
Description
2 Ton Light Commercial High Wall Heat Pump, 24,000 BTU/Hr Nominal Capacity, R410A, 208-230/1/60
Documents
- ac024mnadch+(cnh24adm)_submittal_cac+high+wall_08052020
- [tdb]+cac+wall+mounted_ver.1.1_08282020
- cac_ac0+18+24+mxscccaa_-40+cooling_service+manual_20170506
- cac_high+wall+unit_c-rac_service+manual_20170309
- samsung+2019+product+reference+guide
- ac024mnadch_aa_exploded+views_20170306
- ac024mnadch_submittal_cac+high+wall_01102020
- ac024mxsccc_ac024mnadch_submittal_cac+low+amb+cooling+high+wall_01092020
- light+commercial+catalog_final_01.2019
- cac_high+wall_inst+user+manual_db68-07119a-04_20190622_english
Specifications
- BrandSamsung
- Compatible Outdoor Unit(s) - Single-ZoneAC024MXSCCC/AA, AC024JXADCH/AA
- Cooling Airflow H/M/L/SL (CFM)410/477/551
- Drain Connection (In.)11/16 OD
- Liquid Line Size (In.)1/4 Flare
- Modified Outdoor Cooling Temperature Range0 to 115 F (-18 to 46 C) Matched with AC024JXADCH/AA (Baffle Required), -40 to 115 F (-40 to 46 C) Matched with AC024MXSCCC/AA (Wind Baffle Required)
- Outdoor Heating Temperature Range-4 to 76 F (-20 to 24 C) Matched with AC024JXADCH/AA
- Sound Pressure Level (dBa)43/39/35/32
- Standard Outdoor Cooling Temperature Range23 to 115 F (-5 to 46 C) Matched with AC024JXADCH/AA or AC024MXSCCC/AA
- Voltage (V)208-230/1
- Indoor Unit StyleWall Mount
- ManufacturerSamsung HVAC
- Heat/Cool FunctionHeating and Cooling
- ZoningSingle-Zone
- Height (In.)11-5/8
- Width (In.)41-7/8
- Depth (In.)11-7/8
- RefrigerantR410A
- Capacity (Btu/Hr)24,000
- Enclosure ColourWhite
- Maximum Cooling Airflow (CFM)400 to 599
- Maximum Heating Airflow (CFM)400 to 599
- Nominal Capacity (Tons)2
- Suction Line Size (In.)5/8 Flare
- Weight (lbs)32.19
