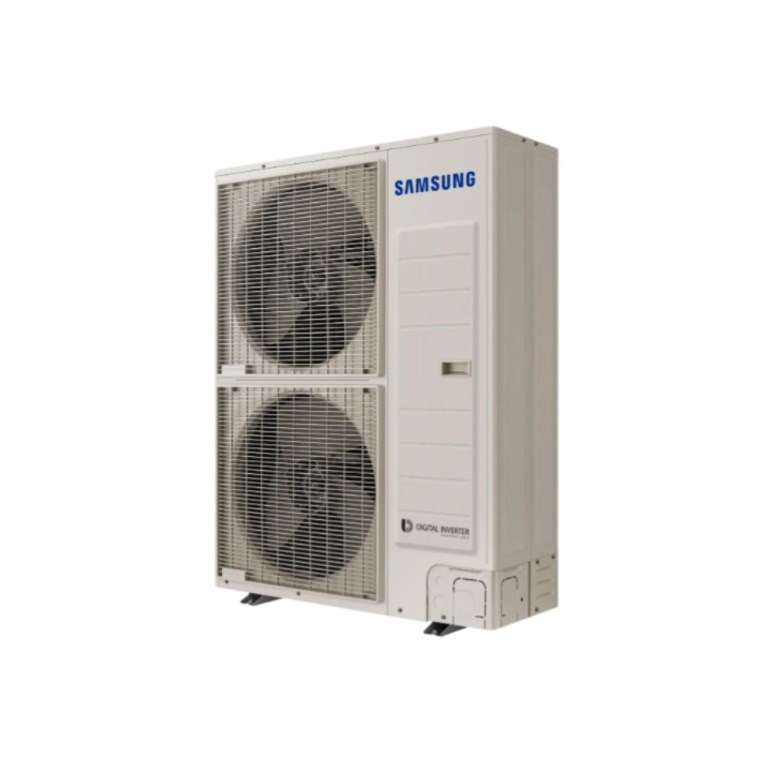

Samsung Max Heat Outdoor Unit | 30,000 BTU/Hr | 208-230/1,2

SKU #:AC030BXSCCH/AA-SAMMFG #:AC030BXSCCH/AA

Samsung Max Heat Outdoor Unit | 30,000 BTU/Hr | 208-230/1,2

SKU #:AC030BXSCCH/AA-SAMMFG #:AC030BXSCCH/AA

$

Description

Light Commercial Max Heat Outdoor Unit has the ability to keep you comfortable in any climate, including -25C. It's compatible with WindFree 4-Way Cassette, Duct S and Multi-Position Air Handler indoor units.

Documents

Installation Manual

Specifications

BrandSamsung
Energy Efficiency Rating (EER)3.87 EER with AC030BN4DCH/AA
Energy Efficiency Rating (SEER)22 SEER with AC030BN4DCH/AA, 22
Liquid Line Size (In.)3/8 Flare
Sound Pressure Level (dBa)37/34/30
ZoningSingle-Zone
Height (In.)14.06
Width (In.)35.35
Depth (In.)35.35
Capacity (Btu/Hr)30,000
Compatible Indoor Unit(s) - Air HandlerAC030KNZDCH/AA
Compatible Indoor Unit(s) - CassetteAC030BN4DCH/AA
Compatible Indoor Unit(s) - Slim DuctAC030BNHDCH/AA
Drain Connection (In.)26.67
Maximum Fuse Amps40A
Nominal Capacity (Tons)2-1/2
Suction Line Size (In.)5/8 Flare
Voltage (V)208-230/1,2
Weight (lbs)49.6

Disclaimer

For professional use only. Refer to all information, warnings and instructions on product and package labeling and accompanying documentation provided by the product manufacturer. Product must be used in accordance with such labeling and documentation.
