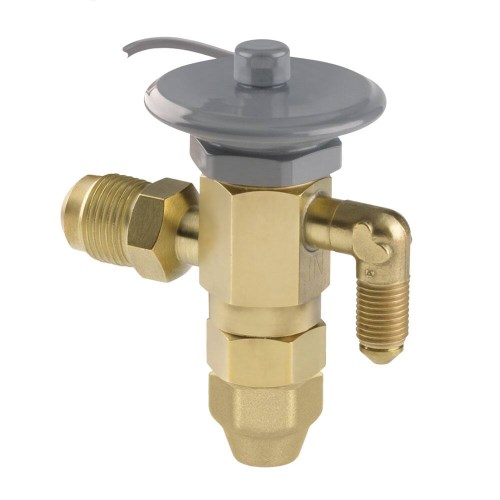

Sporlan 1/2 Ton R404A 1/4" X 1/2" SAE Thermostatic Expansion Valve
Discontinued Model
Sporlan 1/2 Ton R404A 1/4" X 1/2" SAE Thermostatic Expansion Valve
Discontinued Model
$ / EA
Description
The Sporlan RS-1/2-Z 2X4 SAE 5' TXV Features a Balanced Port Design, External Adjustment Assembly, Replacement Element Assembly and a 100 Mesh Inlet Strainer as an Integral Part of the Fitting. The Type R Valve is Ideally Suited for Small to Large Capacity Refrigeration Applications that could Operate over Widely Varying Operating Conditions and may also be Applied in Bi-Directional Applications
Documents
There are no documents available.
Specifications
- BrandSporlan
- Nominal Capacity (Btu/Hr)6000
- ManufacturerParker Hannifin Corporation
- Valve Body TypeType R
- RefrigerantR404A
- Nominal Capacity (Tons)1/2
- Equalizer MethodInternally Equalized
- Inlet Connection (In.)1/4 SAE
- Outlet Connection (In.)1/2 SAE
- Capillary Length (In.)60
- Thermostatic ChargeZ
- Element Size43
- Maximum Operating Pressure (PSI)450
- Nominal Evaporator Temperature40 F (5 C)
- Nominal Liquid Temperature100 F (37.8 C)
- Nominal Pressure Drop (PSI)100
- Strainer Type100 Mesh Removable
