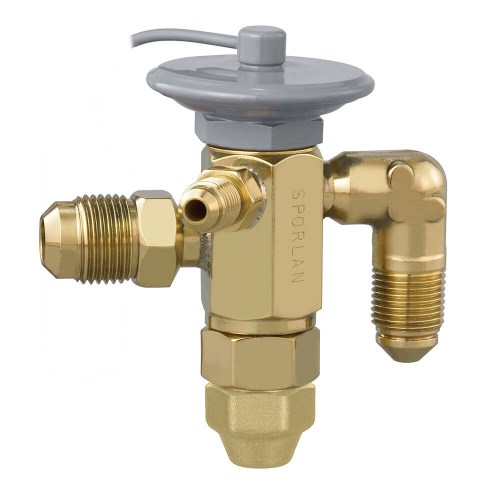

Sporlan 1 Ton R404A 3/8" X 1/2" SAE Thermostatic Expansion Valve
Discontinued Model
Sporlan 1 Ton R404A 3/8" X 1/2" SAE Thermostatic Expansion Valve
Discontinued Model
$ / EA
Description
The Sporlan FSE-1-1/2-ZP 3X4 SAE 30" TXV with SAE Flare Connections is a Small Brass Bar Body Valve with Identical Internal Construction and a Replaceable Thermostatic Element. The Type F Valve has a Removable 100 Mesh Strainer as a Standard Feature. This Valve is Designed for Small Refrigeration Systems such as Refrigerated Cases, Coolers, and Freezers where Space is Limited and an External Adjustment is Desired
Documents
There are no documents available.
Specifications
- BrandSporlan
- Nominal Capacity (Btu/Hr)18,000
- ManufacturerParker Hannifin Corporation
- Valve Body TypeType F
- RefrigerantR404A
- Nominal Capacity (Tons)1, 1-1/2
- Equalizer MethodExternally Equalized
- Inlet Connection (In.)3/8 SAE
- Outlet Connection (In.)1/2 SAE
- Capillary Length (In.)30
- Thermostatic ChargeZP
- Element Size43
- Maximum Operating Pressure (PSI)450
- Nominal Evaporator Temperature40 F (5 C)
- Nominal Liquid Temperature100 F (37.8 C)
- Nominal Pressure Drop (PSI)100
- Strainer Type50 Mesh Removable
